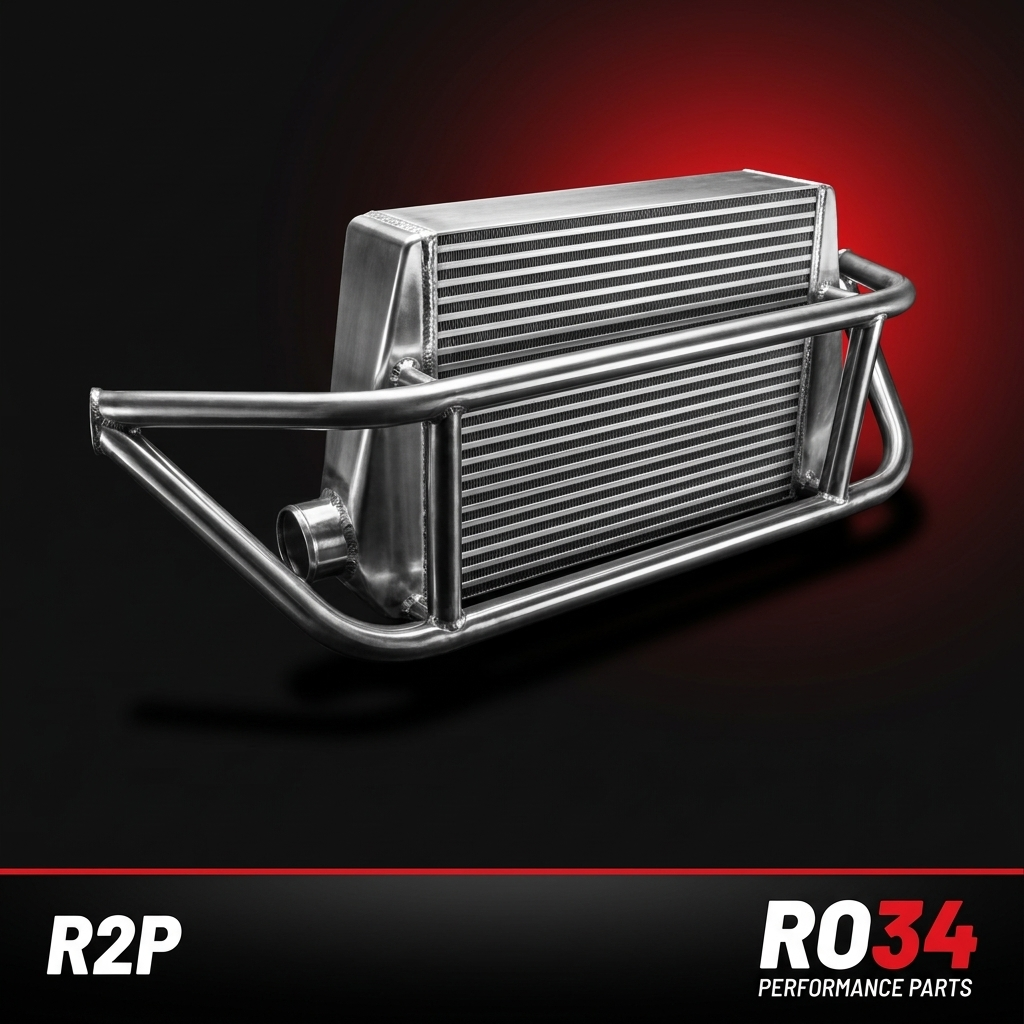

R2P Front Mount Intercooler Kit + Crash Bar (CSF 1000HP Core) – High Performance for VW Golf GTI/R and Audi S3

The R2P MQB/EVO4 True Front Mount Intercooler + Crash Bar Kit combines high-performance cooling with structural safety, designed specifically for 2.0T engines on Volkswagen and Audi's MQB and EVO4 platforms. Unlike other kits that force you to cut the original crash bar, R2P includes a 1.5" chromoly steel bar that reinforces the vehicle's integrity while housing a CSF core rated for 1000 HP. If you're running consistent track sessions or Stage 2 and 3 builds, this system eliminates heat soak and delivers repeatable performance.

Features

• CSF 1000HP Bar-and-Plate core — Superior heat exchange for extreme builds and track use.
• 1.5" chromoly crash bar — Maintains structural protection without modifying the original chassis.
• 7.5 kg weight reduction at the front axle — Improves dynamic balance and steering response.
• 15°C drop in intake air temperature (IAT) — Consistent power without heat-related losses, even during long track sessions.
• Water-jet cut aluminum end tanks, hand-welded — Maximum durability and professional finish.

Technical specifications

• Type: True Front Mount Intercooler (FMIC) + Crash Bar Kit
• Core: CSF Bar-and-Plate (1000HP capacity)
• Inlet / Outlet: 2.5" (63mm) / 2.75" (70mm)
• Bar material: 1.5" chromoly steel (Chromoly)
• Kit weight: 19.7 kg (vs. ~27.2 kg OEM system)
• Fitment: Compatible with radar sensors (optional) and OEM mounting points

Compatibility

MQB Platform (2015 – 2021)

• Volkswagen Golf MK7 / MK7.5 GTI and R
• Audi A3 / S3 (8V)

EVO4 / MQB Evo Platform (2021+)

• Volkswagen Golf MK8 GTI and R
• Audi A3 / S3 (8Y)

Why a front mount intercooler?

Most MQB intercoolers install in the original "sandwich" location between radiator and condenser, where airflow is restricted. The R2P kit mounts the intercooler in a true front position, receiving direct fresh air with no obstructions. While other FMIC kits force you to remove or cut the crash bar, R2P replaces it with a high-strength chromoly bar, combining safety and performance in one package.

FAQ

Do I need to cut the bumper?
Minor trimming of the inner bumper is required for proper fitment, but it doesn't affect exterior appearance.

What about the front radar sensor (ACC)?
The kit includes optional mounting for maintaining radar functionality on MK7 Pre-Facelift models.

Can I keep the original intercooler installed?
Yes, the kit allows you to leave the original intercooler in place or install delete brackets (not included in this package).

Shipping & warranty

Available for immediate order. Fast shipping throughout Spain. Fitment guarantee for MQB and EVO4 platforms. Check availability for custom fabrication if your vehicle requires specific adaptations.
